EM-898 USB Paging system



Small wireless paging system on your office! You can page your staffs, and sending new promotion message to LED sign board(s), from your laptop or P/C, Also you can get all incoming e-mail notices immediately while you are leave with your table !!



The EM-898 local paging device is designed to directly and instantly page the e-mail subscriber anywhere once the P/C or laptop receive an e-mail messages. Also you can take it as your owned office paging system



Also we can offer the VB driver code for customer's own software applications...




















      ** Main Function **

  • Low cost and Long distance
  • POCSAG standard format
  • Real time transmission
  • On-site Paging system
  • e-Mail to page




**  Specifications of EM-898  **

Paging format: POCSAG
Frequency: 303-933MHz Frequency synthesized.
Baud rate 512/1200/2400 bps
Message: Alphanumeric (Max 40 Character).
RF output 10mW -13mW. (max).
Modulation: FSK ,NRZ.
Deviation: 4.5K
Stability: ±10 ppm.
Pager Capacity No limit
Operating Voltage: by USB.
Programming: via USB with P/C.
Antenna fold antenna.
Case Size: 90mm X 23mm X 16mm.
Model Weight: 30 g.

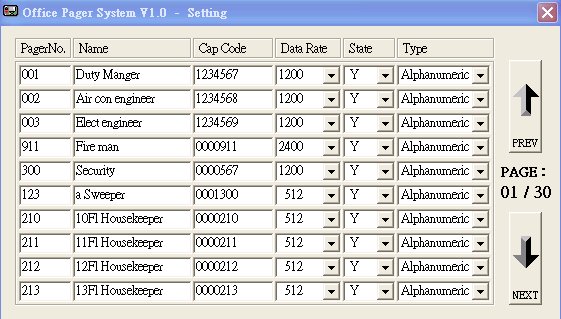

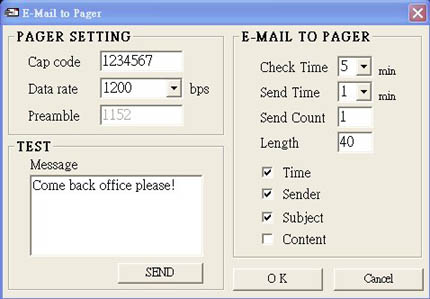

Programming screen


Option Office Pager data base OS
