WDIT M898

Small wireless paging system on your office! You can page your staffs from your NB or P/C Also, you can get all incoming e-mail notices immediately while you are leave with your table !!

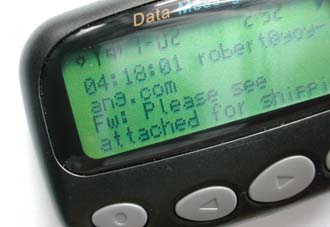

The EM-898 local paging device is designed to directly and instantly page the e-mail subscriber anywhere once the P/C or Notebook receive an e-mail messages. Also you can take it as your owned office paging system

Also we can offer the VB driver code for customer's own software applications.

Function

Low cost and Long distance
POCSAG standard format
Real time transmission
On-site Paging system

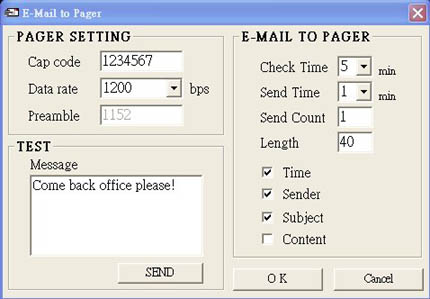

e-Mail to pager

Operation with by

for Windows 98,and XP applications.

Item NO.	EM-898-10/50	EM-898-100	EM-898-150
Frequency:	One Channel from 410MHz to 490MHz by crystals controlled.
Frequency Stability::	10 ppm at 25ºC.	10 ppm at 25ºC.	10 ppm at 25ºC.
Paging format:	POCSAG
Baud rate:	512bps / 1200bps / 2400bps.
Message data:	Numeric or alpha-numeric, max 40 characters per each paging
RF output	10~50mW	100mW	150mW
Modulation:	FSK ,
Deviation:	4.5Khz
Operation Temp:	-20ºC ~ +70ºC.
Pager Capacity:	from 8 to 2097151 Pager Capcode
Operating Voltage:	+5V from USB port
Coverage distance	about 8,000 square Meter	about 50,000 square Meter	about 85,000 square Meter
Size of Housing::	90mm X 23mm X 16mm	90mm X 23mm X 16mm	90mm X 23mm X 16mm
Model Weight:	30gs	32gs	38gs
