Specification of Y1727RY2

POCSAG

Remote Controller

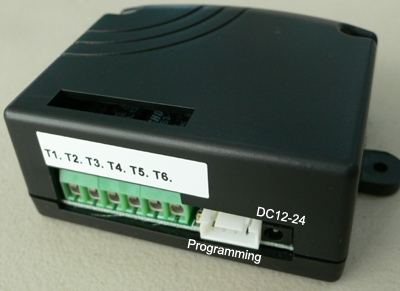

 Y1727RY2

Long Distance / Low cost / Reliability / Prompt Control

Via Paging Network or On-Site System Applications

Control and Distribute the Electric Power Easily

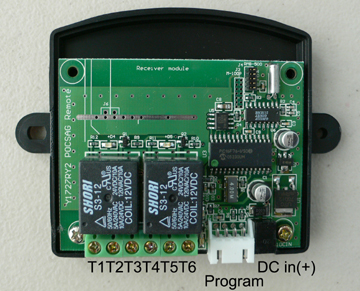

Built-in 2 PCs 10A Power relays on board

The Y1727RY2 series is the high performance VHF/UHF/868MHz/900MHz paging telemetry controller,

which is specially designed for electric power lines ON-OFF remote control, car alarm and security alarm applications etc.

And the control concepts is to utilize thru either the existed POCSAG paging infrastructure

or on-premises paging transmitter to send out the various 46 message demands.



Main Function

  • 138MHz~174MHz, 430MHz~470MHz, 929MHz~933MHz
  • POCSAG, Baud: 512bps/1200bps/2400bps
  • Programming by P/C
  • Internal Antenna
  • Exterior antenna (option)
  • TTL output (J2)

　

   Application
  • Security control
  • Car rental control
  • Electric appliance rental control
  • Energy management
  • General control
  • Data display

　

General

Size:

76mm X 72 mm X 33 mm

Power Source:

DC 9~24V Normal 12V

Weight

95gs

Operation Temperature

-40˚C~85˚C

RF Performance

Frequency bands:

136~174MHz,279~285mHz (synthesize or crystals), 420~490MHz,929~933MHz by crystals Oscillator

No-tune bandwidth:

10Mhz VHF, 20MHz UHF.

Frequency stability:

+/- 10 ppm standard

Channel spacing

12.5kHz or 25kHz

Demodulation

FSK NRZ, POCSAG format 512, 1200 or 2400 Bps

Selectivity

55dB

Inter modulation rejection

60dB

PLL step size

12.5K/25K

Sensitivity

-106db/M (512bps),-105db/M (1200bps), -103db/M (2400bps)

Power Relay Unit

Contact Rating

120VAC 10A

Insulation Resistance

DC 500V 1000MΩ.

Contact Material

Ag Alloy

Approved

UL, CUL, and TUV

Operating Temperature

-40℃~+85℃

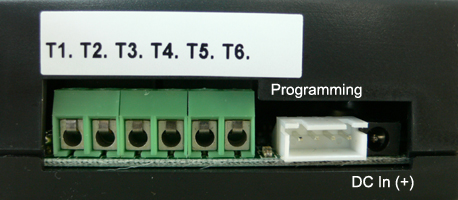

 I/O Connector Designation

 T1:Relay 1 N/O

 T2:Relay 1 Com

 T3:Relay 1 N/C

　

 T4:Relay 2 N/O

 T5:Relay 2 Com

 T6:Relay 2 N/C

　

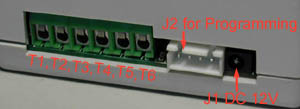

 J2 TTL output & programming I/O

　

 J1 DC power input

　

　

　

　

　

　

　

　

                                                                       Specifications subject to change without notice.
