Specification of W1710

 POCSAG  Telemetry

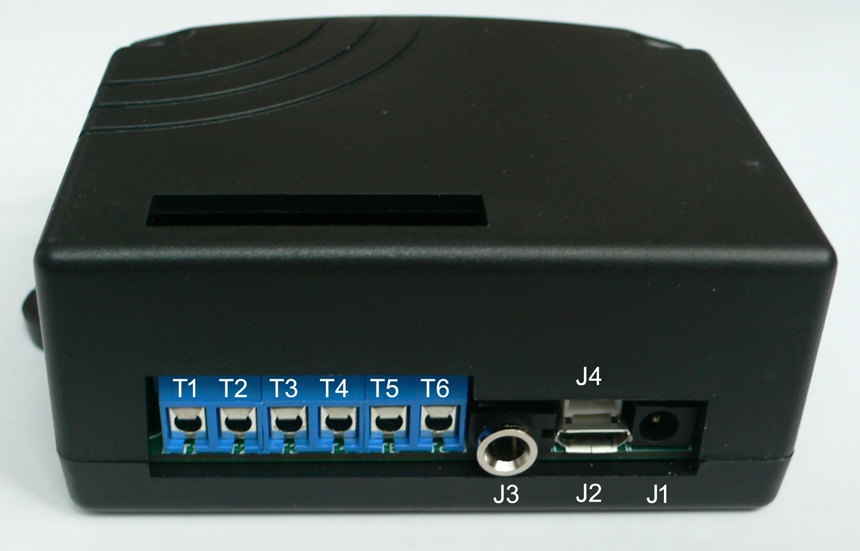

  W1710 POCSAG Airport

136-960MHz Multi-Function POCSAG Data Transceiver

Meet Any Paging Network / Private Paging System

Full Frequency Synthesized

Programming by USB

                        RS-232/RS422/RS485 Message Data Output and 2 Relays Dry Contact O/P

‘@

‘@

The W1710 POCSAG Airport series is the hi performance VHF/UHF,868MHz, and 915MHz paging telemetry controller,

which is specially designed for electric power lines ON-OFF remote control,

and data message receiver for security alarm applications etc.

And the control concepts is to utilize thru either the existed POCSAG paging infrastructure or on-premises paging transmitter

to send out the various many message demands.

Main Function

  • Wide bands synthesizer frequency
  • POCSAG, baud: 512bps/1200bps/2400bps
  • RS-232/RS422/RS485 output
  • Built-in 2 relays dry contact On/Off output
  • FSK (POCSAG Data) output
  • Programming by USB
  • Wide DC power in 6-35V
  • Internal loop antenna
  • Option SMA Jack for external antenna
   Application
  • POCSAG Data Receiver
  • Remote Controller
  • Car Burglar Alarm
  • Telemetry
  • Messaging devices
  • Advertisement Panel
  • wireless clock system
  • LED Message sign

‘@

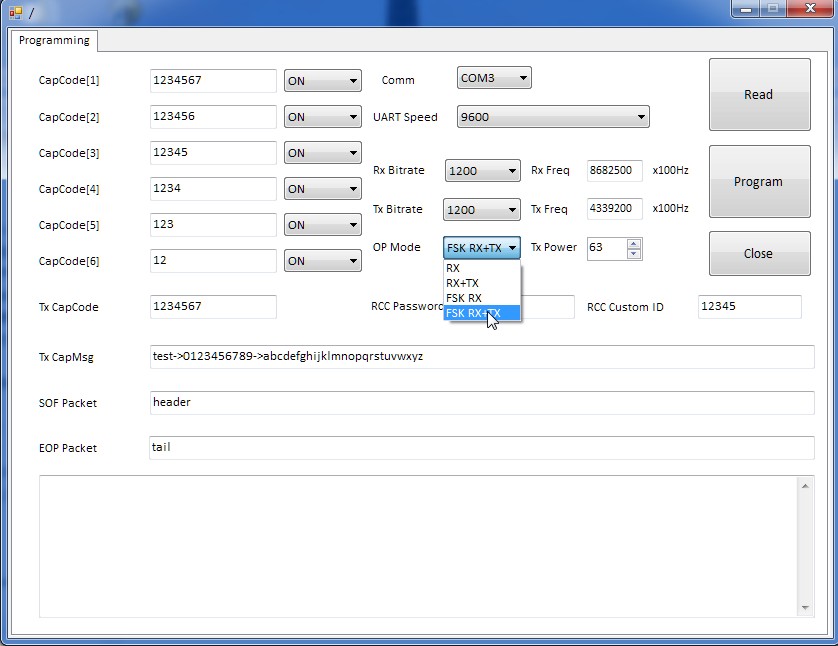

                                                                                Programming OS



‘@

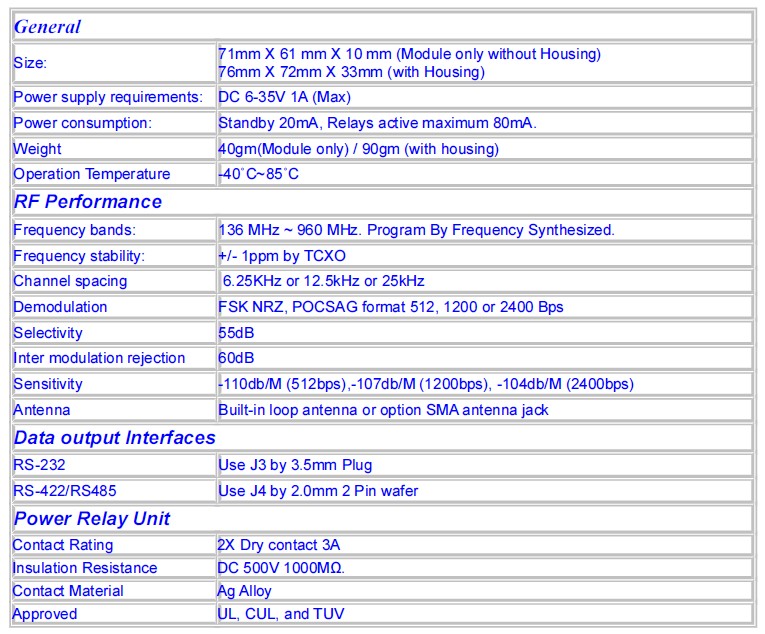

                                         Specifications




‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

‘@

  W1710 Manual

‘@

                                                                                     Specifications subject to change without notice.
