WDIT M838SKD

Specification of M-838SKD

POCSAG Transmitter Module

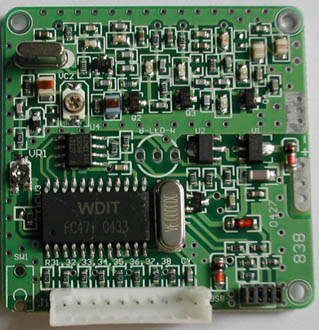

M-838SKD

8 Dry-Contact Inputs POCSAG Transmitter

SKD (Semi-Kit Device)

The well-designed miniature Model M-838SKD, which has the 8 dry-contacts inputs POCSAG Encoder with 10mW or 35mW built-in FSK Transmitter, is an USB microprocessor control products mainly used for message encoding into the digital POCSAG paging format. And the 8 inputs M-838SKD allows the device to generate 8 different addresses and numeric or alphanumeric messages for the air paging application usages.

Main Function

USB port Pre-programmable
POCSAG, CCIR#1 (NRZ) standard format
Data rate 512/1200/2400bps programmable
Numeric or alphanumeric message
Built-in 10 or 35 mW transmitter
Easy assembly and connection
Low power consumption
Low battery warning indication
Wide voltage operation from DC 6-20V
Small Size: 46mm X 46mm X 9mm

I/O Connector

⊙ 1. key 1 In
⊙ 2. key 2 In
⊙ 3. key 3 In
⊙ 4. key 4 In
⊙ 5. key 5 In
⊙ 6. key 6 In
⊙ 7. key 7 In
⊙ 8. key 8 In
⊙ 9. GND
⊙ 10. V+ 6-20V

Specification

Description		Part No: M-838SKD
Data Format		POCSAG
Data Rate		512bps/1200bps/2400bps
RF output		10 mW or 35 mW
Memory Slot		8
Message Type		Numeric or Alphanumeric
Repeat Call		1-4 times
Preamble		2-2400 bits
Power source		DC 6-20 V
PCB Size		46mm X 46mm X 9mm.
Power consumption		Standby 15uA TX 80mA
Weight		10 grams.

Specifications subject to change without notice.
