Specification of M-810L SKD

¡@

POCSAG Transmitter Module

 M-810L SKD



  Applications:

  Paging system

  Waiter paging service

  Car alarm system

  Home security system

  Remote controller

 4 Inputs POCSAG Transmitter

SKD (Semi-Kit Device)

The well-designed miniature Model M-810L SKD, which has the 4 inputs POCSAG Encoder with 10mW built-in FSK Transmitter, is an USB microprocessor control products mainly used for message encoding into the digital POCSAG paging format. And the 4 inputs M-810L SKD allows the device to generate 4 different addresses and numeric or alphanumeric messages for the air paging application usages.

    Main Function

  • Frequency synthesized programmable
  • Set-up by USB port for programming
  • POCSAG,standard format
  • Data rate 512/1200/2400bps
  • Numeric or alphanumeric message
  • Built-in 10 mW transmitter
  • Easy assembly and connection
  • Low power consumption
  • Wide voltage operation by 3V battery or Ext.power from DC 6V to 15V
  • Small Size: 50mm X 40mm X 9mm

¡@

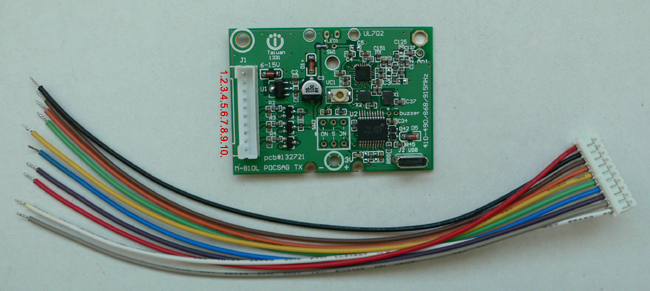

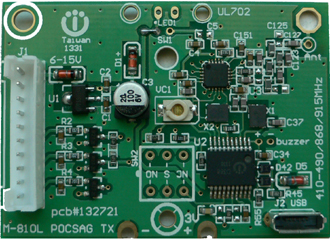

 I/O Connector

  • 1 DC + 6-15V

  • 2 DC GND

  • 3 GND for Switch 1

  • 4 Trigger for switch 1

  • 5 GND for Switch 2

  • 6 Trigger for switch 2

  • 7 GND for Switch 3

  • 8 Trigger for switch 3

  • 9 GND for Switch 4

  • 10 Trigger for switch 4

¡@

             Specification

Description

Part No: M-810L SKD

Data Format

POCSAG

Data Rate

512bps/1200bps/2400bps

RF output

1-10 mW programmable

Trigger input

4

Message Type

Numeric or Alphanumeric

Repeat Call

1-4 times

Power source

DC 6-15 V

PCB Size

50mm X 37mm X 7mm.

Power consumption

Standby 0.3uA TX 45mA

Weight

12 g with connector wire

                                                                                                   Specifications subject to change without notice.
