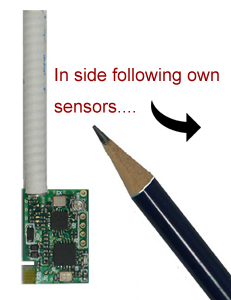

Micro-x POCSAG Transmitter module



IoT New solution !

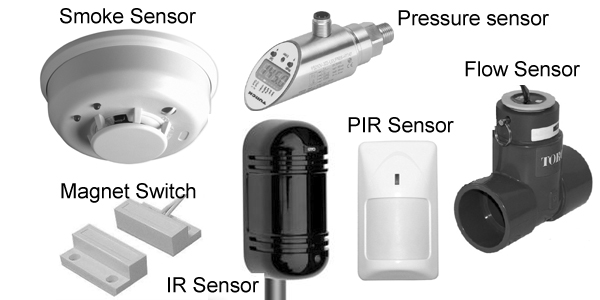

Micro-x Alarm message Transmitter Module for Wireless alarm and security system, Industrial monitoring and control system.

long long range and long long battery lift... Programmable Frequency from 315-, 433-, 868-, 915-, 920-, 950-MHz, ISM/SRD Band



The new design Micro-x is a cost effective and high performance sub-1 GHz RF transmitter, Which is integrated with a high configurable baseband modulator. The device support various FSK modulation formats and has a configurable data rates from 0.5 to 2.4K bps. Inside of POCSAG Copcode with message The new w-009, which is the high reliability and low cost, high power output transmitter in ISM band, is an ideal design module used for IoT wireless data applications etc.



It is easy to program and set up the desired pager frequency, capcode, data rate, repeat time etc. functions.




                                                                                                                                  wave




Main Function

- Oscillator by TCXO
      - RF Power 10mW (about 10dbm)
      - Frequency stability <1ppm
      - Frequency programmable
      - RF Power programmable
      - Capcode programmable
      - Frequency Ranges:
      - 303 - 315 MHz
      - 410 - 490 MHz
      - 820 – 960 MHz
      - Programming by micro USB
      - 2 alarm inputs & 1 own data input
      - 2 I/O connectors for select
      - Ultra fast Transmitter times
      - LED indicate for TX and battery low
      - Antenna on board
      - External antenna option
      - Operation Voltage by 3V (2.6-3.3V)
      - Compact Size: 27mm x 15mm

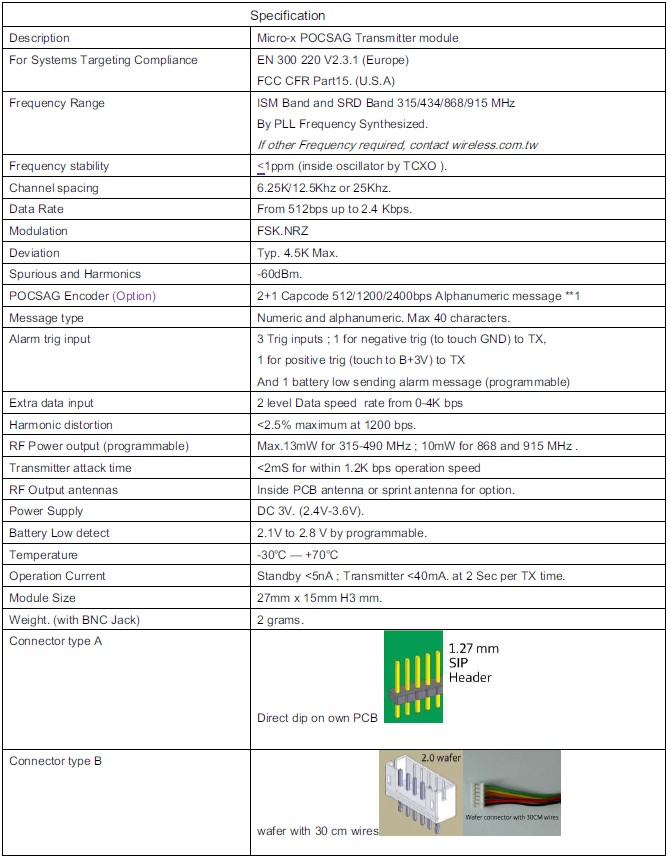

 Micro-x v2.6 spec




                                                                           Programming screen

                 W2.6 programming screen
